| Model：CG-06 |

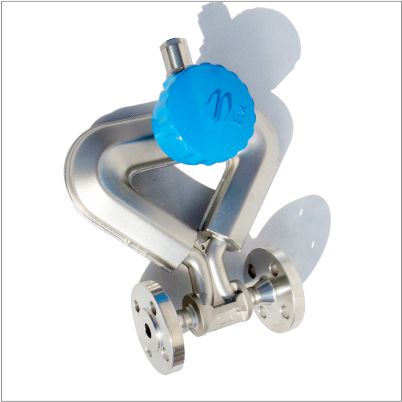

Coriolis meter CG-06, DN6mm, max. flow rate 18kg/min, mass accuracy grade 0.2, has the character of wide application, convenient installation, high reliability, low maintenance, etc. |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
| |
|
| |
 |
|
Technical parameters：
| Model no. |
CG-06 |
| Mass accuracy grade |
0.2 |
| Max.flow rate |
18kg/min |
| Temp.accuracy |
±1°C |
| Zero stability |
0.003kg/min |
| Repeatability |
0.05% |
| MWP |
4MPa |
| Nominal diameter |
6mm |
| End connection |
Customizable |
| Fluid temperature |
-200~200°C |
| Wetted parts |
Stainless steel 316L |
| Sensor housing |
Stainless steel 304 |
| RH |
≤95%,non condensed |
| Pressure drop |
≤0.2MPa |
| Ex-mark |
Ex[ib]IIBT1~T6Gb/Ex[ib]IICT1~T6 Gb |
| Atmospheric Pressure |
86~106kPa |
| Operating Voltage |
AC85~265V,DC12~28V |
| Communication port |
RS485Modbus RTU |
| Packing |
1set/carton |
| Package size |
390*390*310mm |
| G.W. |
6.8kgs |
| Warranty |
2 years |
|
